LGA SERIES ■Features/顯著特點 1, This LGA series inductors are available in 4 from    factors ranging from 0307 to 0512.2, These are coaxial horizontal types, highly miniaturized and light-weight.3, Epoxy resin construction assures high reliability. ■Applications/用處  Televisions, VCR, OA equipment, PC, Other electronic equipment, etc.

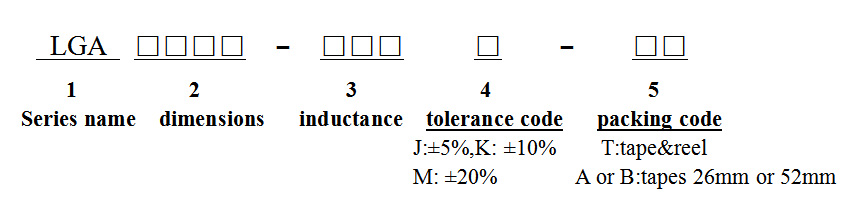

■Part numbering system/型號標示法

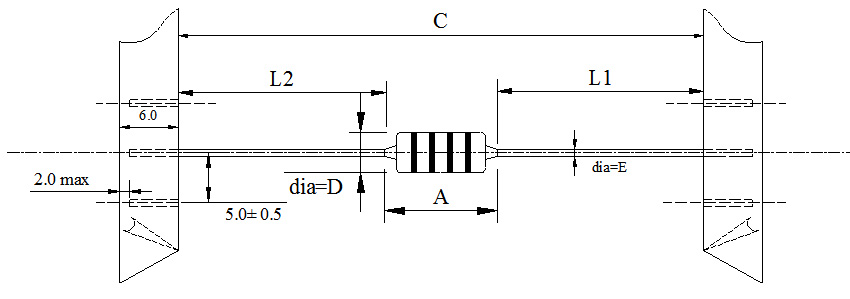

■Shapes and dimensions/形狀及尺寸 (UNIT:mm)

LGA0307TYPE:	A:7.0max	D:3.2max	C:52 or 26	E:0.60	|L1-L2|<1.0
LGA0410TYPE:	A:10.	D:4.3max	C:52	E:0.65	|L1-L2|<1.0
LGA0510TYPE:	A:10.0max	D:5.4max	C:52	E:0.65	|L1-L2|<1.0
LGA0512TYPE:	A:12.0max	D:5.4max	C:52	E:0.65	|L1-L2|<1.0

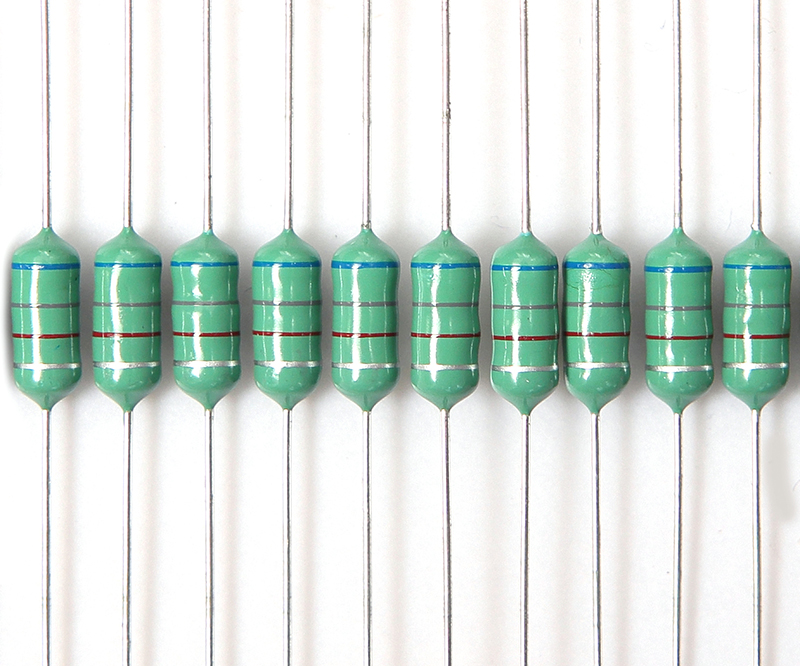

■Color code table色碼標示

Color code marking(from left)

1, The first effective number2, The second effective number3, Multiplier4, Inductance tolerance

Packaging style and quantities

Packaging style	Type	Quantity

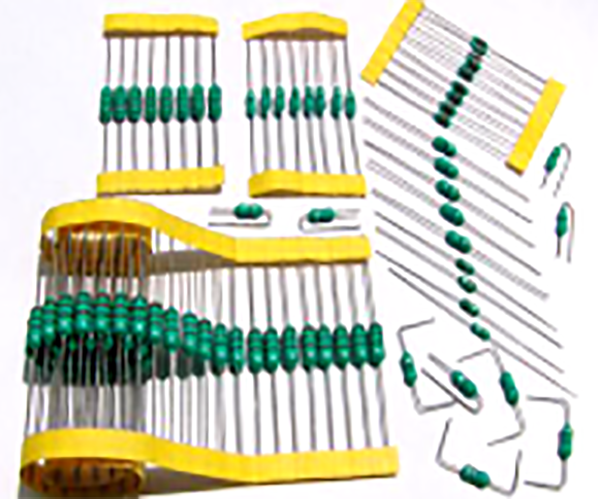

Taping(Ammo-pack)	LGA0307LGA0410LGA0510(2)	2000 pieces/box2000 pieces/box1000 pieces/box

■CHARACTTERISTICS / 特征

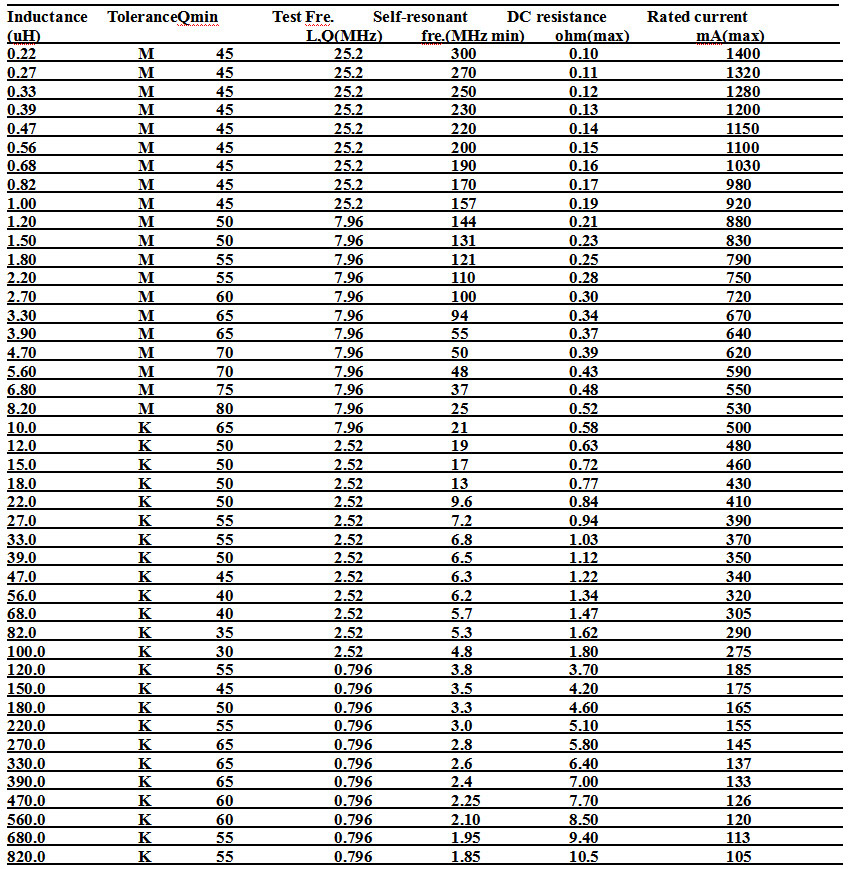

■LGA SERIES LGA0307 TYPE CHARACTTERISTICS

※Test meter: L&Q  HP4284A; Srf  HM2770;※For special specifications please contact with us.

■LGA SERIES LGA0410 TYPE CHARACTTERISTICS

※Test meter: L&Q  HP4284A; Srf  HM2770;※For special specifications please contact with us.

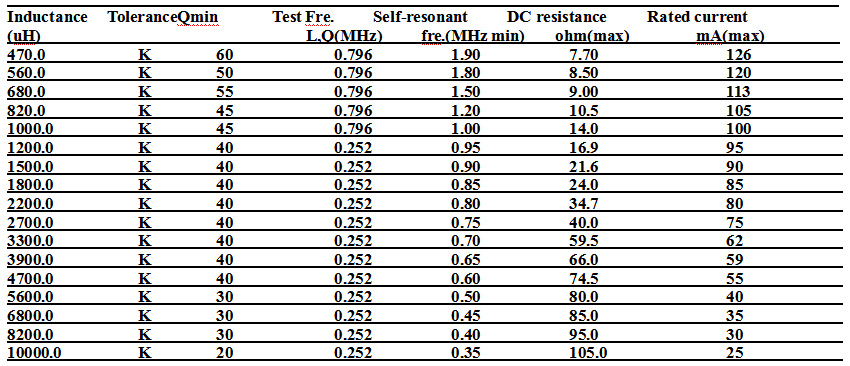

■LGA SERIES LGA0510 TYPE CHARACTTERISTICS

※Test meter: L&Q  HP4284A; Srf  HM2770;※For special specifications please contact with us.

■LGA SERIES LGA0512 TYPE CHARACTTERISTICS

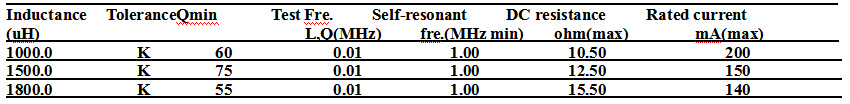

※This type of inductor used in "OSRAM" the company's low-power electronic ballasts,   The core structure and material differences in the general inductance.
